PHT-550 Hardness Tester
The PHI-550 is a small, lightweight, and portable hardness tester, ideal for hardness testing of heavy or large metal parts both indoors and outdoors. It features easy operation, a large LCD display, a multi-language interface, and automatic recognition of impact device types. Key specifications: hardness measurement range of 170-960 HLD, 360° testing direction capability, and an operating temperature range of -10℃~+50℃.
Product Details
Application:
PHT-550 is a small, light and portable hardness tester. It is most suitable for testing of heavy, big or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, it can automatically compensate effect of weight which according to the test direction.
Feature:
Menu operation, easy and convenient, large
Key or touch type screen operation
Automatic hardness conversion
Large capacity rechargeable battery
Attached printer can be used to print out testing result
Automatic recognition for the type of impact device
Automatic detecting the impacting direction
The setup can be be saved automatically
Dual-operation both by keys or touch screen
Automatic storage for 800 groups of testing data
uses wireless to communicate with printer, operates
Standard: ASTM A956 & DIN 50156 (in preparation)
Specification:
|
MODEL |
PHT-550 |
|
HL display range |
170～960HLD |
|
Repeatability |
4HLD |
|
Testing direction |
All direction |
|

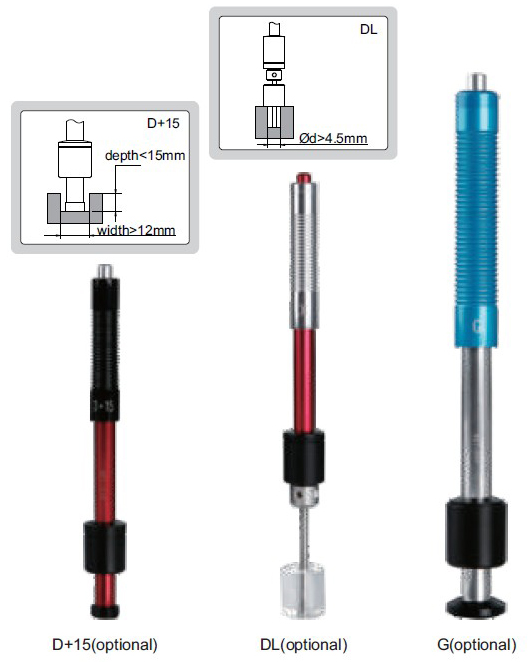

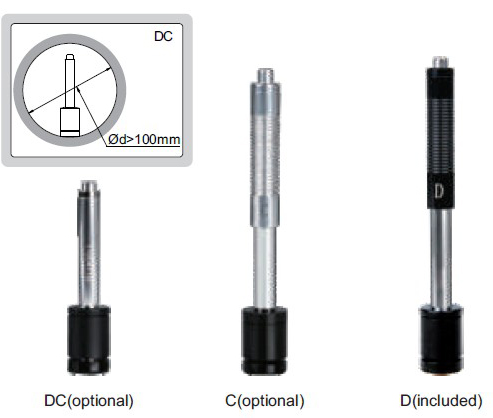

Optional Impact Device |
D, DC, DL, D+15, C, G (automatic identification) |
|
Display |
4.0” 240*320(touch screen), Bright and clear LCD display with back light |
|
Hardness conversion |
HRC, HRB, HB, HV, HSD & tensile strength |
|
Multi-language menu |
English, Korean, Deutsch, French, Italian, Spanish, Russian, Polish, Chinese Simplified, Chinese Traditional |
|
Power |
3.7V (rechargeable li-ion battery) |
|
Charging power supply |
DC5.5V/1A |
|
Printer |
Wireless Mini-printer (Cable no needed) |
|
Operating environment Temperature |
-20°C～+50°C; Humidity:20%～85% |
|
Storage environment Temperature |
-30°C～+70°C; Humidity:5%～95% |
|
Dimensions |
180mm*90mm*30mm |
|
Weight |
350g (include D type impact device) |
|
Standard accessories |
Display Unit, Impact Device D, Test Block, Mini-printer, Charger, Little Support Ring, Cleaning Brush, USB Cable, Software CD |
|
Options Impact Device |
DC; DL; D+15; C; G |

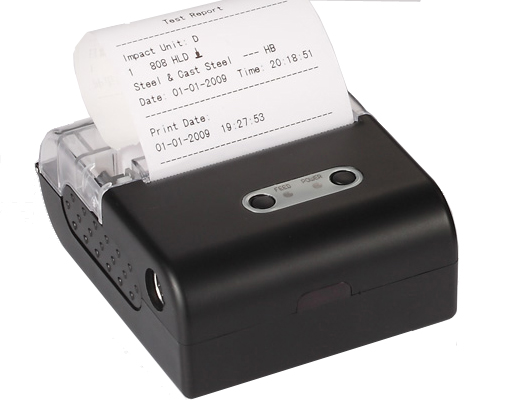

Bluetooth wireless printer:
1- Width of print paper: 57.5± 0.5mm
2- Diameter of paper roll: ≤30mm (Heatsensitive print paper)
3- Printing speed: 5cm/sec. (when power is enough)
4- Printing resolution: 203dpi (8dot/mm)
5- Working power supply: 650mAh 7.2V
rechargerable NiMH
6- Recharging power supply: DC 12V/1A
7- Dimensions: 90 x 76 x 36mm
8- Weight: 220g (not including paper roll)
