QHV-100 Vertical and Horizontal Instant video measuring machine
The QHV-100 fully automatic one-click video measuring machine boasts dozens of times higher measurement efficiency than traditional video measuring machines, enabling one-click completion of full-size inspection. Equipped with a matching function, the software allows arbitrary workpiece placement without coordinate setup, supporting simultaneous flash measurement of multiple workpieces and one-click multi-layer measurement. With a double telecentric lens and auto-focus technology, it ensures high precision and efficiency. Key specifications: Measurement accuracy: 3+L/250 μm, Field of view: 82*55 mm, 20M pixel digital black and white CCD camera.
Product Details
Features

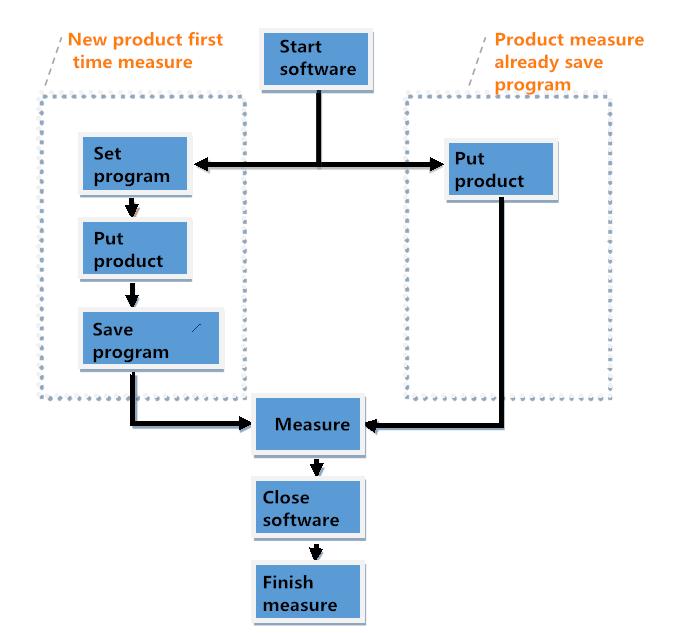

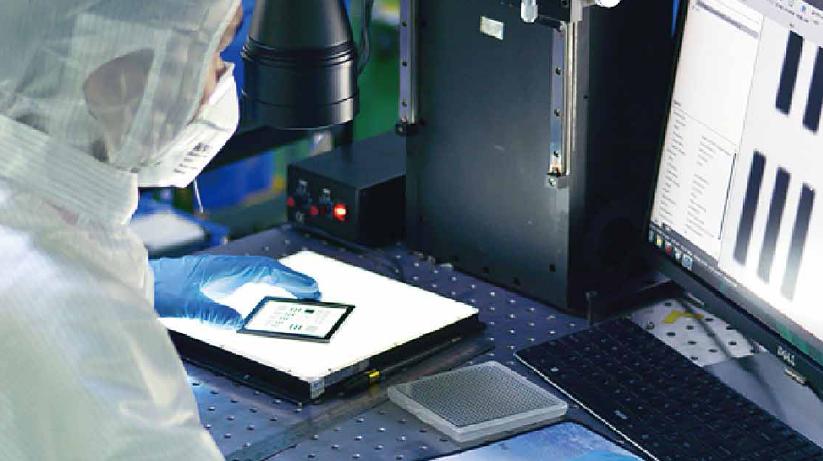

The measurement efficiency is dozens of times faster than the normal video measuring machine, one click to finish measure
Software comes with match function, workpiece can be placed arbitrarily, without build coordinate
Multiple workpieces can be moved at the same time for flash measurement, realizing high-precision and high-efficiency measurement
Software is equipped with splicing image function, which can realize the rapid scanning and measurement of a wide range of products, suitable for measuring in the circuit board, printed circuit board industry, or larger products
Software can be equipped with a point laser to complete product height measurement such as segment difference, hole depth, flatness.

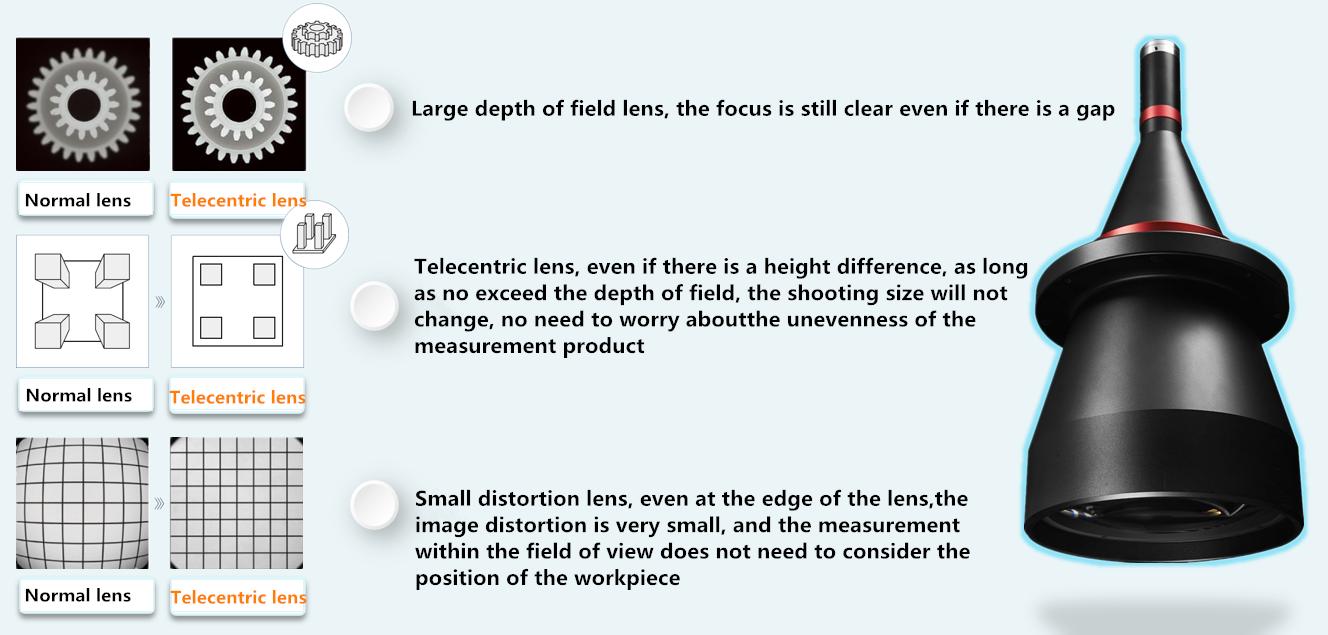

The world's leading auto focus, which can realize the lens auto focus without manual adjustment, can record the position of multiple layers of the product in the program, and realize the one-click multi-layer measurement of multi-step products
Real-time data reports improve measurement efficiency and diversified report output. Feel free to output product control size.
Technical Specification
|
Model |
QHV-100 |
|
Measure range(mm) |
100*100 |
|
View of field_V (mm) |
82*55 |
|
View of field_H(mm) |
82*55 |
|
Dimension (L*W*H mm) |
950*400*800 |
|
Machine weight(kg) |
65 |
|
Accuracy (um) |
3+L/250 |
|
Working distance (mm) |
100 |
|
Display Resolution (mm) |
0.0005 |
|
CCD |
20M pixel digital Black White camera |
|
Optics system |

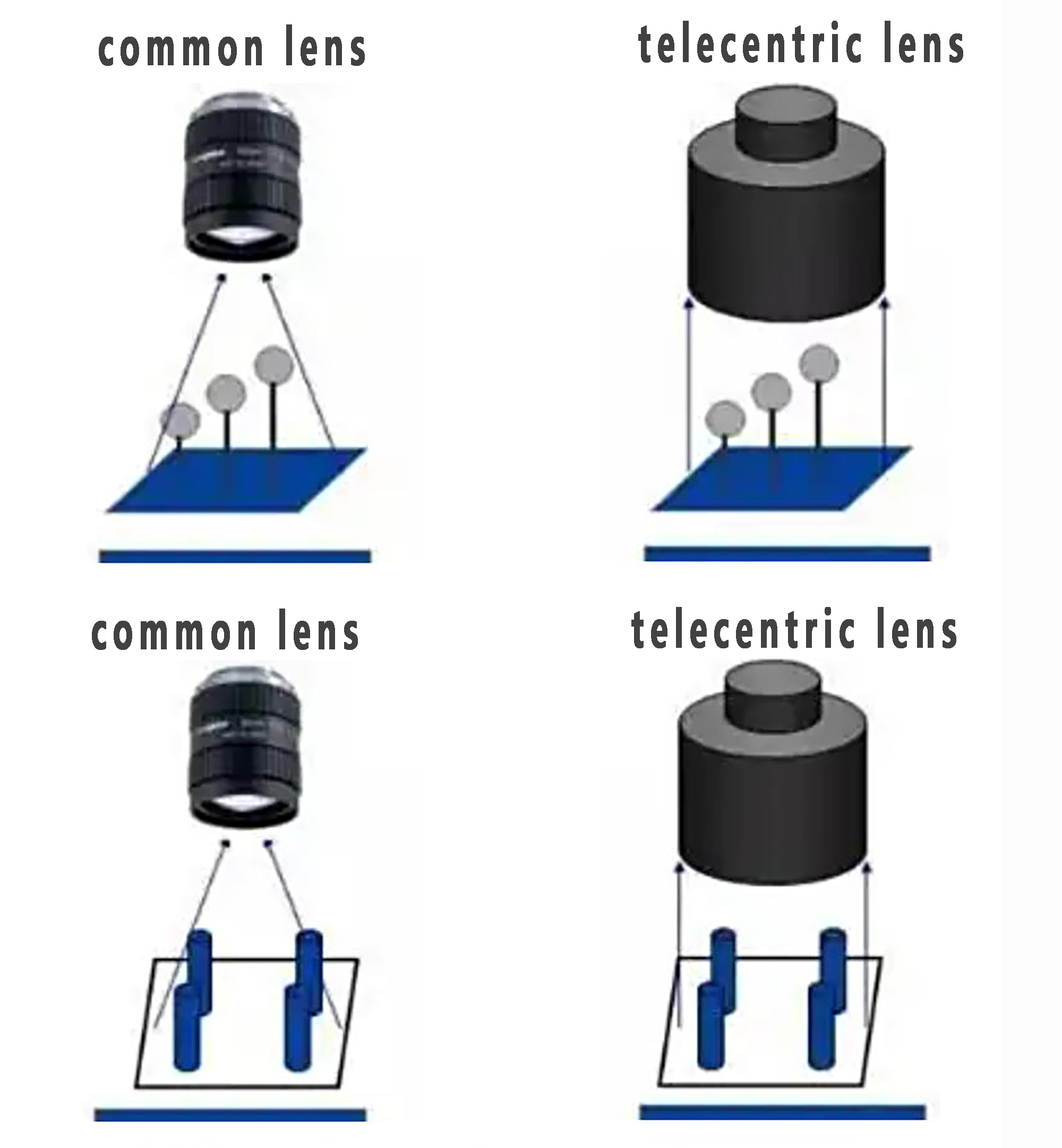

Double Telecentric lens 0.16 X |
|
Lighting system |
Coaxial light for profile light |
|
Transmission light H |
Parallel Optical Path LED Transmissive Light Source |
|
Transmission light V |
Parallel Optical Path LED Transmissive Light Source |
|
Surface light V |
External coaxial LED reflective lighting |
|
Move system |
Z axis high precision guideway + Grinding screw |
|
Calibration block |
Porous standard block |
|
Computer system |
Intel I7, 32G, 500G SSD, USB3.0 , 24inch high resolution display |
|
Main body structure |
Base and column adopt high precision granite |
Optical lens system
|
View field |
82*55mm |
|
Maximum splicing stroke(mm) |
200*200/300*300 |
|
Support CCD size |
（1 Target surface） |
|
TV distortion |
<0.01% |
|
CCD connect interfact |
C-mount |
|
Best imageF/# |
6.5 |
|
Object telecentricity |
0.02 |
|
|
|
|
|
