QM200 Instant Video Measuring Machine
QM200 Instant Video Measuring Machine delivers measurement efficiency dozens of times higher than conventional machines. It allows arbitrary workpiece placement without coordinate setup, supports simultaneous flash measurement of multiple workpieces and one-click multi-layer measurement. Equipped with a telecentric lens system, it features a 190×120mm field of view and 4μm repeatability, with image stitching and auto-focus functions to efficiently inspect precision workpieces like printed circuit boards, and generate diversified inspection reports.
Product Details
Features
The measurement efficiency is dozens of times faster than the normal video measuring machine, one click to finish measure
Software comes with match function, workpiece can be placed arbitrarily, without build coordinate
Multiple workpieces can be moved at the same time for flash measurement, realizing high-precision and high-efficiency measurement
Software is equipped with splicing image function, which can realize the rapid scanning and measurement of a wide range of products, suitable for measuring in the circuit board, printed circuit board industry, or larger products
Software can be equipped with a point laser to complete product height measurement such as segment difference, hole depth, flatness.
The world's leading auto focus, which can realize the lens auto focus without manual adjustment, can record the position of multiple layers of the product in the program, and realize the one-click multi-layer measurement of multi-step products
Real-time data reports improve measurement efficiency and diversified report output. Feel free to output product control size.
Technical Specification
|
Model |
QM200 |
|
Measuring range (mm) |
190*120 |
|
Machine size(mm) |
600*750*1500 |
|
Glass countertop size (mm) |
250*150 |
|
Net weight (kg) |
150 |
|
Working distance(mm) |
355 |
|
Field of view(mm) |
190*120 |
|
Accuracy FOV (μm) |
±6 |
|
Repeatability FOV (μm) |
± 4 |
|
Table load (kg) |
10 |
|
Z move (mm) |
55 |
|
Optical magnification |
0.068X |
|
Z type of drive |
DC integrated servo motor |
|
Z-axis movement |
control by software |
|
Camera |
20-Megapixel Monochrome Digital Camera (USB 3.0 Interface) |
|
Transmission light source |
Parallel Light Path LED Transmissive Illumination |
|
Surface reflective light source |
LED Annular Reflective Illumination System |
|
Surface coaxial light |
External Coaxial LED Reflective Illumination System |
|
Measurement software |
One-click Splicing Measurement Software |
|
Options |
White-light Confocal Spectroscopy |

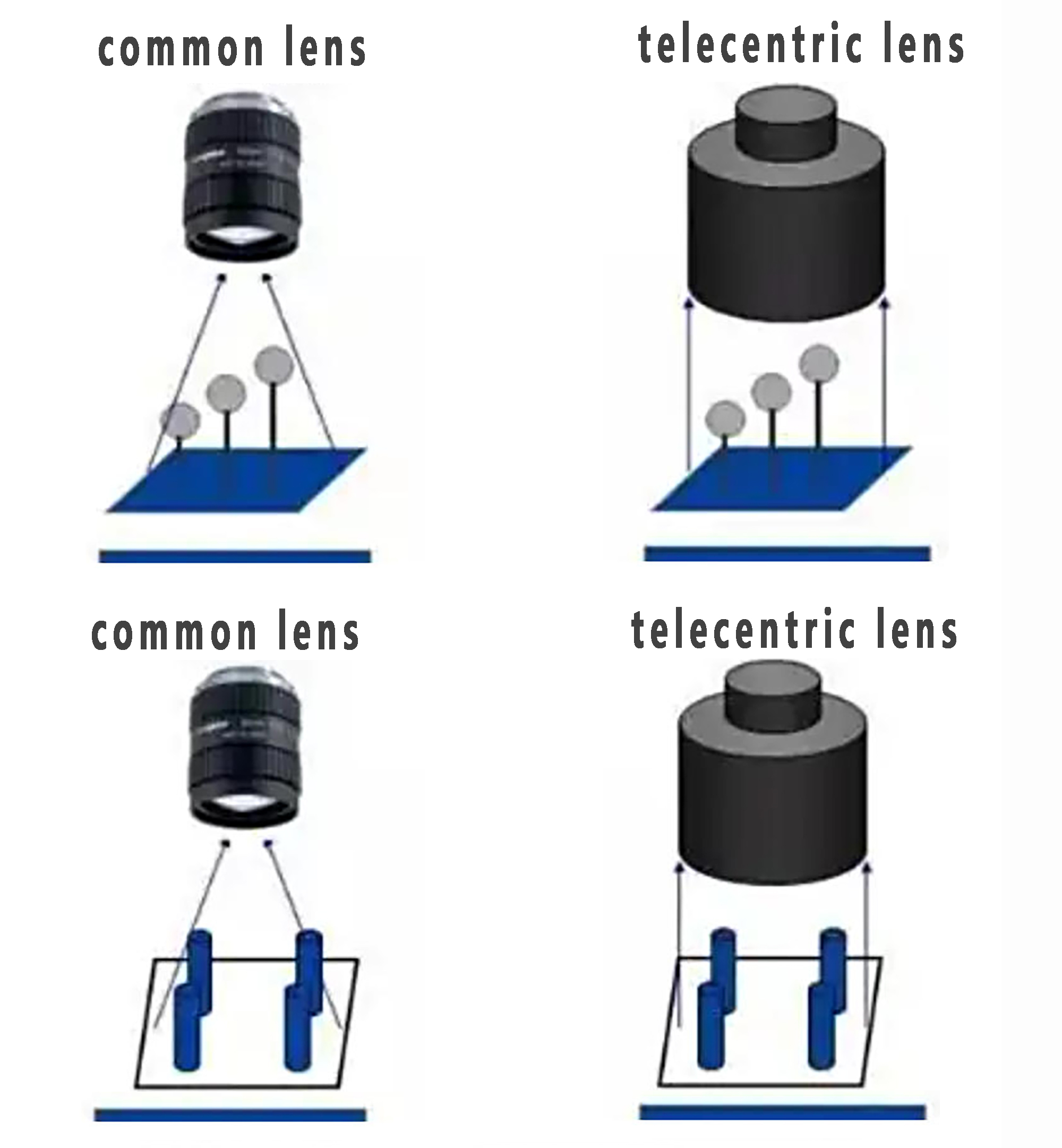

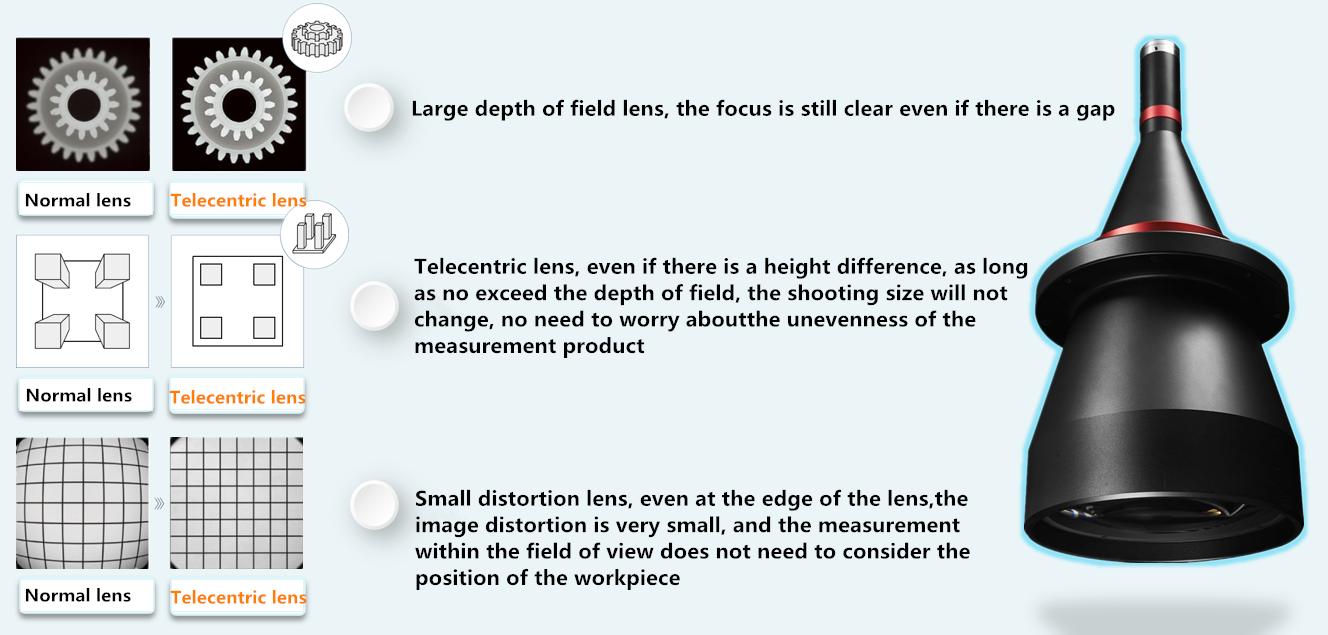

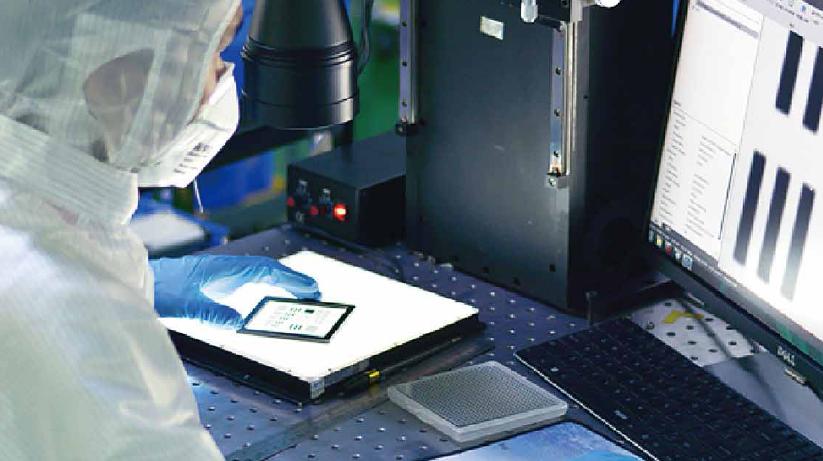

Optical lens system
|
View field |
82x55mm |
|
Maximum splicing stroke(mm) |
200*200/300*300 |
|
Support CCD size |
（1 Target surface） |
|
TV distortion |
<0.01% |
|
CCD connect interface |
C-mount |
|
Best image F/# |
6.5 |
|
Object telecentricity |
0.02 |
|
|
|
|
|
