QT300 Instant Video Measuring Machine
QT300 Instant Video Measuring Machine boasts measurement efficiency dozens of times higher than conventional machines, supports arbitrary workpiece placement without coordinate setup, enables simultaneous flash measurement of multiple workpieces, integrates auto-focus and image stitching functions for high-precision rapid inspection of precision workpieces like circuit boards, and can be extended with a point laser for height measurement with flexible real-time data report output; its key specifications include a measuring range of 300×300~500×500mm, an accuracy (FOV) of ±3μm, and a repeatability (splicing) of ±3μm.
Product Details
Features

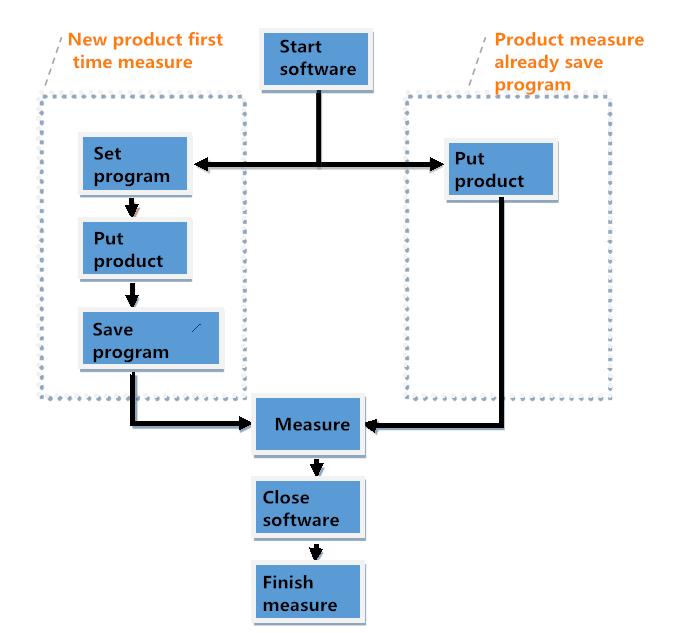

The measurement efficiency is dozens of times faster than the normal video measuring machine, one click to finish measure
Software comes with match function, workpiece can be placed arbitrarily, without build coordinate
Multiple workpieces can be moved at the same time for flash measurement, realizing high-precision and high-efficiency measurement
Software is equipped with splicing image function, which can realize the rapid scanning and measurement of a wide range of products, suitable for measuring in the circuit board, printed circuit board industry, or larger products
Software can be equipped with a point laser to complete product height measurement such as segment difference, hole depth, flatness.

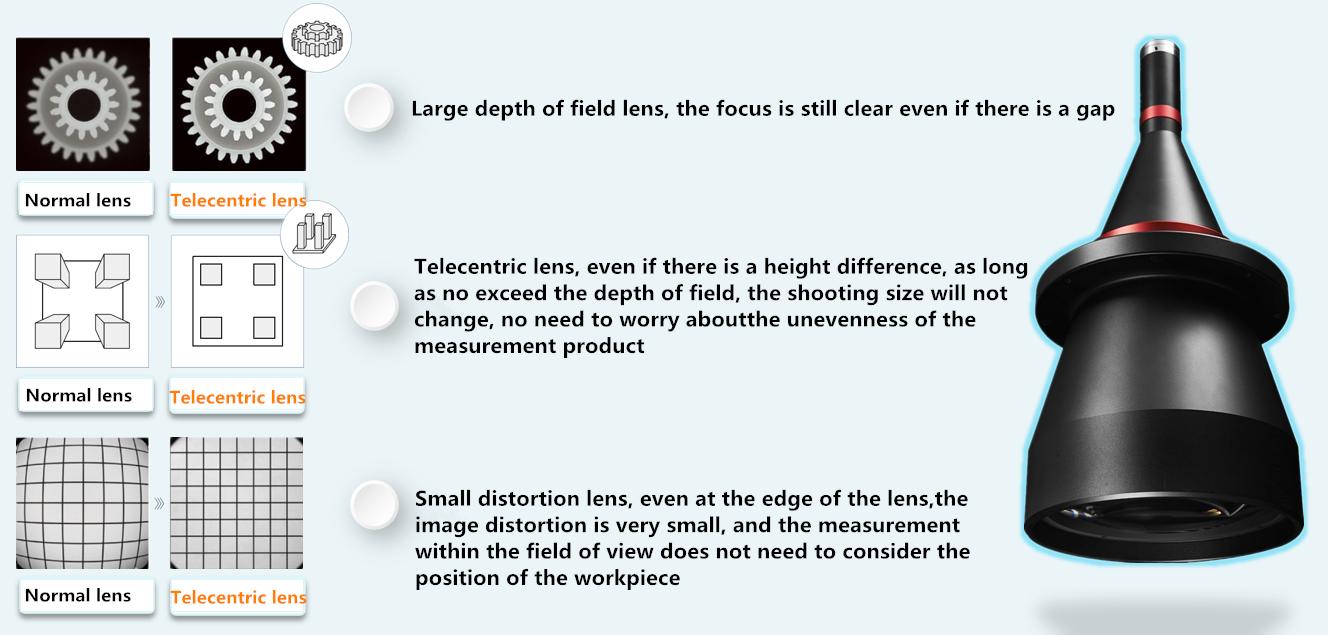

The world's leading auto focus, which can realize the lens auto focus without manual adjustment, can record the position of multiple layers of the product in the program, and realize the one-click multi-layer measurement of multi-step products
Real-time data reports improve measurement efficiency and diversified report output. Feel free to output product control size.
Technical Specification
|
Model |
QT300 |
QT400 |
QT500 |
|
Measuring range (mm) |
300x300 |
400x400 |
500x500 |
|
Footprint (mm) |
900x1302x1710 |
1000x1350x1710 |
1100x150x1710 |
|
Glass countertop size (mm) |
370x370 |
470x410 |
570x510 |
|
Net weight (kg) |
570 |
650 |
750 |
|
Accuracy_FOV (μm) |
±3 |
||
|
Accuracy_splicing (μm) |
4.0 + L / 200 |
||
|
Repeatability_FOV (μm) |
± 1.5 |
||
|
Repeatability_splicing (μm) |
±3 |
||
|
Table load (kg) |
25 |
||
|
Scale |
0.0005mm, tape scale |
||
|
Motor |
Ac Servo Motor |
||
|
Optical magnification |
0.2 X |
||
|
Field of view |
82 X 55 mm |
||
|
Camera |
20-Megapixel Monochrome Digital Camera (USB 3.0 Interface) |
||
|
Transmission light source |
Parallel Light Path LED Transmissive Illumination |
||
|
Surface reflective light source |
LED Annular Reflective Illumination System |
||
|
Surface coaxial light |
External Coaxial LED Reflective Illumination System |
||
|
Measurement software |
One-click Splicing Measurement Software |
||
|
Options |
White-light Confocal Spectroscopy |
||

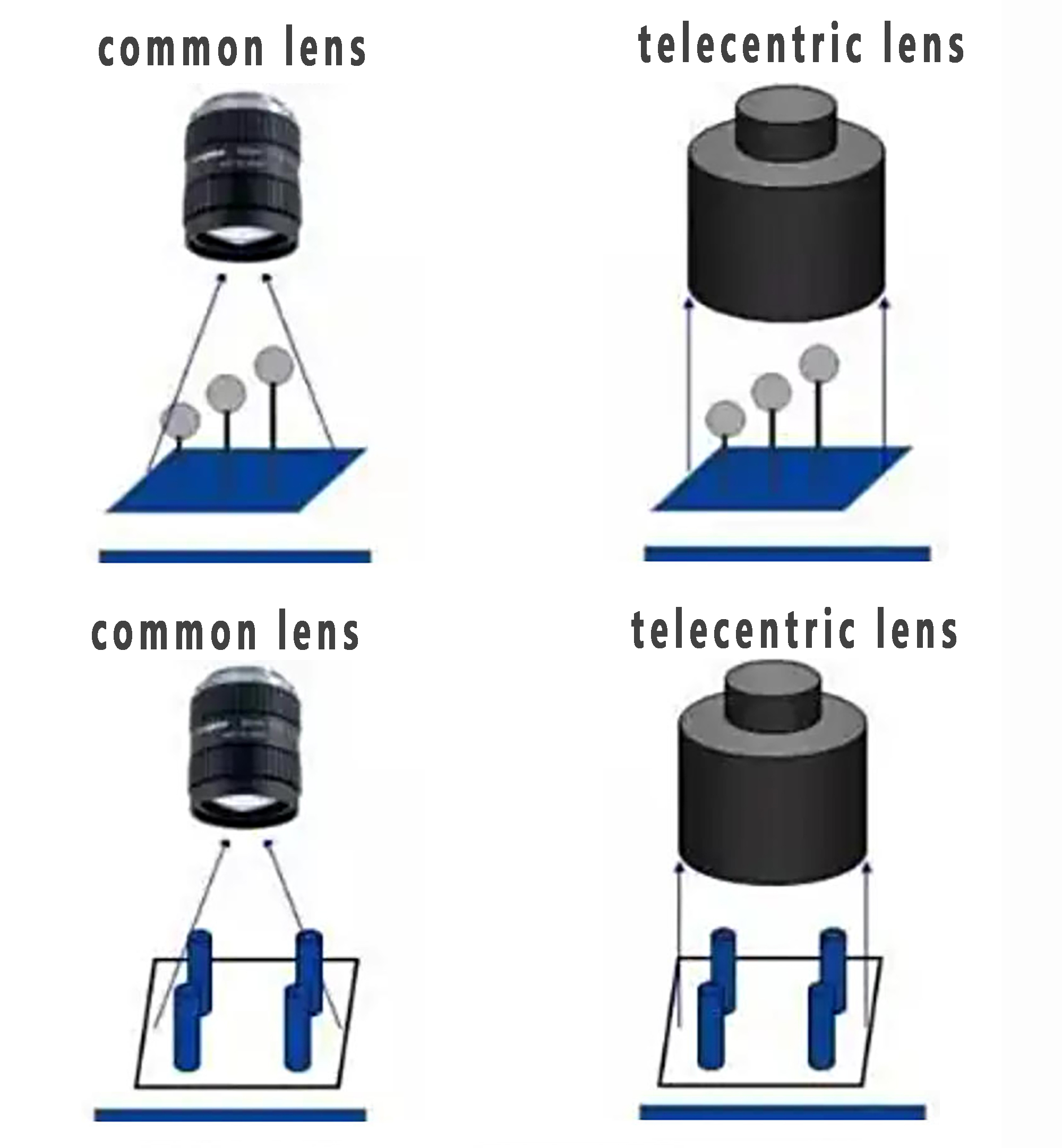

Optical lens system
|
View field |
82x55mm |
|
Maximum splicing stroke(mm) |
200*200/300*300 |
|
Support CCD size |
（1 Target surface） |
|
TV distortion |
<0.01% |
|
CCD connect interface |
C-mount |
|
Best image F/# |
6.5 |
|
Object telecentricity |
0.02 |
|
|
|
|
|
Machine Ship configuration
|
No. |
Product Name |
QTY |
Note |
|
1 |
Machine host |
1 |
QT |
|
2 |
Light source（coaxial light + surface light +coaxial bottom light） |
3 |
Install on machine |
|
3 |
Taiwan“HIWIN”high precision guideway |
2 |
Install on machine |
|
4 |
Ball screw rod（z axis ） |
1 |
Install on machine |
|
5 |
software |
1 |
Install on PC |
|
6 |
Precision calibration ruler |
1 |
Install on machine |
|
7 |
USB dongle |
1 |
Install on machine |
|
8 |
PC |
1 |
Install on machine |
|
9 |
Certificate of conformity |
1 |
With |
|
10 |
Packing list, manual |
1 |
With |
