SHB-3000XZM Digital Brinell Hardness Tester
The SHB-3000XM automatic Brinell hardness tester features a precision structure design, with its test force controlled electronically. The machine has a compact overall structure, ensuring stable loading with closed-loop control, and is equipped with a built-in touch screen and a micro system for easy parameter setting and measurement result display. It supports 10 levels of test force (up to 3000 kgf) and 13 Brinell hardness scales, and is capable of automatically switching between indenters and objectives, meeting various hardness testing requirements.
Product Details
Feature:
Install 3 indenters
Built in 2 lens
Automatic switching between the objective and the indenter
Touch screen
The main body adopts cast iron structure which minimizes the deformation. The shell has undergone natural aging treatment for more than half a year, and its physical properties are stable.
The structure realizes a 1:1 high-precision gravity sensing system combined with zero gap ball screw force control, using a 0.03 level force sensor to ensure precise and error free loading every time.
After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which is beneficial for the stability of the testing data at different heights during lifting.
This instrument has 10 level of test force, 13 Brinell hardness test scales, suitable for different kinds of metal materials.
With three indenters and two objectives, no need to change the indenters when testing different samples; with rigorous optical structure and high magnification, it makes the indentation observed clearly.
Switching positioning adopts a dual combination of mechanical and photoelectric limits to improve positioning accuracy.
It adopts the integrated design of hardness tester and micro computer, and it has all functions of computer with Windows operating system.
With CCD image measuring system, touch screen operating and displaying, real time saving and list display of indentation length and hardness value data results, capable of generating WORD or EXCEL reports.
With USB, VGA, LAN ports, it can connect to the internet and other devices for more optional functions.
Function:
SHB-3000XZM automatic Brinell hardness tester adopts precise structure design, the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact. With built-in touch screen and micro computer, it makes the parameter setting and results show directly with easy operation, it also avoids the stimulation and visual fatigue of the light source of the eyepiece, and reduces the measuring error. The instrument has three indenters and two objectives, just rotate the hand wheel to focus the sample and press start, the hardness tester will automatically select the corresponding indenter based on the test scale, and do loading, dwelling, unloading, and switching to the objective. With clear indentation display and automatic measurement, it achieves the automatic Brinell measurement.
Standard: ISO 6506，ASTM E10-12，JIS Z2243，GB/T 231.2
Detail Pictures:

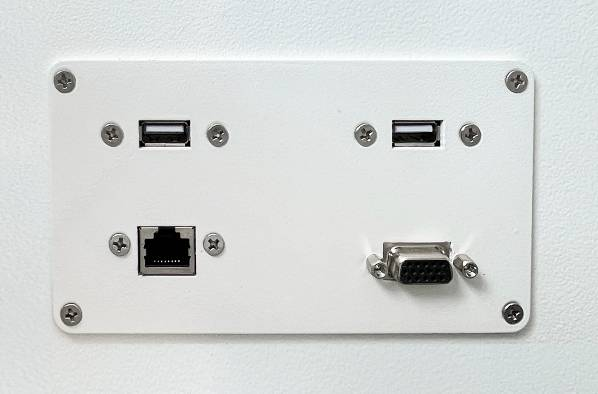

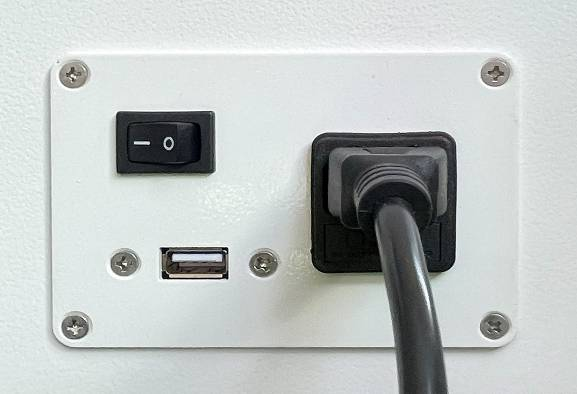

USB,VGA,LAN port USB port

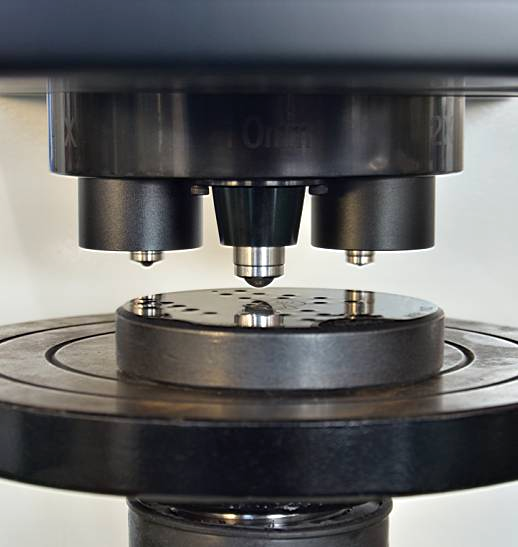

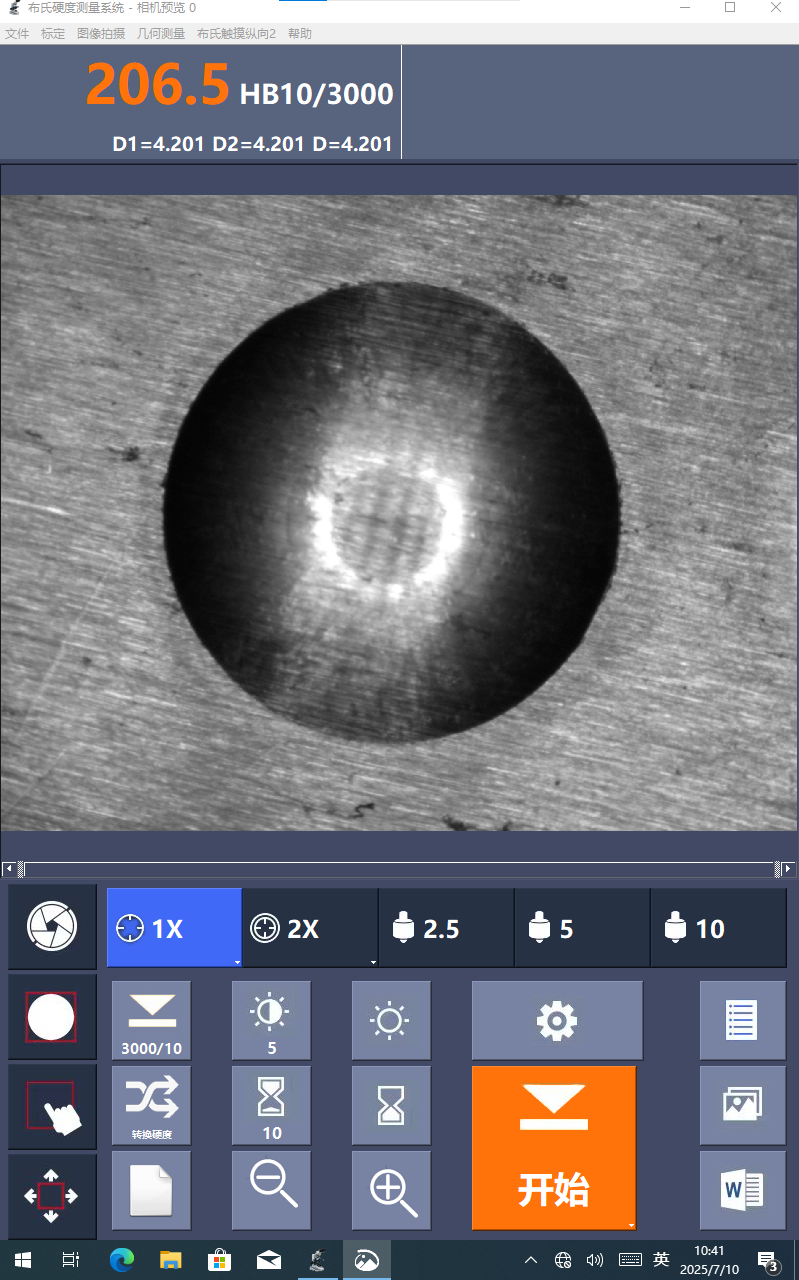

Operation interface Three indenters, Two objectives
Technical specification:
|
model |
SHB-3000XZM |
|
|
test force |
kgf |
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
|
N |
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
|
|
test range |
3.18～653HBW |
|
|
loading method |
automatic (loading/dwell/unloading) |
|
|
hardness reading |
12 inch Touch Screen, Automatic Measuring |
|
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS |
|
|
data output |
word or excel report 3×USB, 1×VGA，1×LAN |
|
|
shifting between objective and indenter |
automatic recognition and shifting (three indenters, two objectives) |
|
|
objective |
1× , 2× |
|
|
effective field of view |
1×：6mm，2×：3mm |
|
|
resolution |
1×：4.6μm，2×：2.3μm |
|
|
dwell time |
0~99s |
|
|
max. height of specimen |
290mm |
|
|
throat |
150mm |
|
|
power supply |
AC220V，50Hz |
|
|
dimension |
690×310×1000mm，packing dimension: 820×460×1170mm |
|
|
weight |
net weight: 200kg，gross weight: 240kg |
|
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
Instrument Main Body |
1 |
8 |
Accessory Box |
1 |
|
2 |
CCD |
1 |
9 |
1×, 2× objective |
2 |
|
3 |
Φ74mm Flat Anvil |
1 |
10 |
Inner Hexagon Spanner 3mm |
1 |
|
4 |
Φ200mm Flat Anvil |
1 |
11 |
Hardness Block 150~250 HBW 10/3000 |
1 |
|
5 |
Φ80mm V-shaped Anvil |
2 |
12 |
Hardness Block 150~250 HBW 5/750 |
1 |
|
6 |
Fuse 2A |
1 |
13 |
Anti-dust Cover |
1 |
|
7 |
Power Cable |
1 |
14 |
Usage Instruction Manual |
1 |
