SHR-1500DH Digital Rockwell Hardness Tester
The SHR-1500DH Digital Rockwell Hardness Tester features a high-resolution color LCD screen, offering excellent reliability and stability as a high-precision hardness testing instrument that integrates mechanical and electrical functions; it directly displays indentation depth, test force, hardness value and other data, supports conversion between multiple hardness scales such as Rockwell and superficial Rockwell, and is equipped with data storage, automatic statistics and printing functions, with a clear and intuitive interface suitable for hardness testing of various metal materials including quenched steel, annealed steel, and cast iron, featuring a test force range of 10kgf~150kgf, support for hardness scales like HRA, HRB, HRC, and a maximum specimen height of 400mm.
Product Details
Feature:
SHR-1500DH Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display. It has a good reliability, excellent operation and easy watching, so it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the Rockwell scales; Conversion scales of different kinds of hardness; Display backlight adjustable with energy-saving mode; Real time data saving in the folder, the data can be arbitrary deleted and printed out; Test results can be saved in real time with automatic calculation of maximum, minimum and average value; The interface is visual and clear, very easy to operate; With RS232 interface for connecting to the computer.
Application:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Detail pictures:

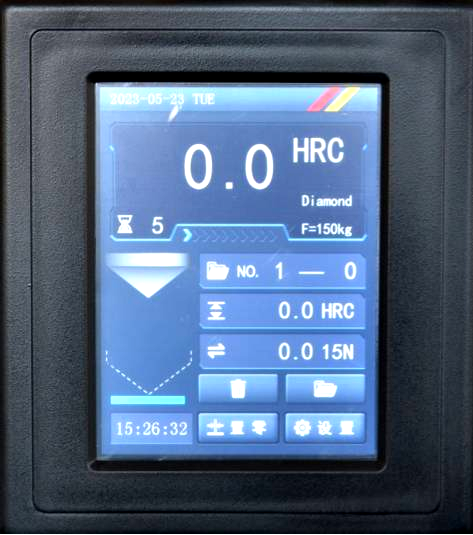

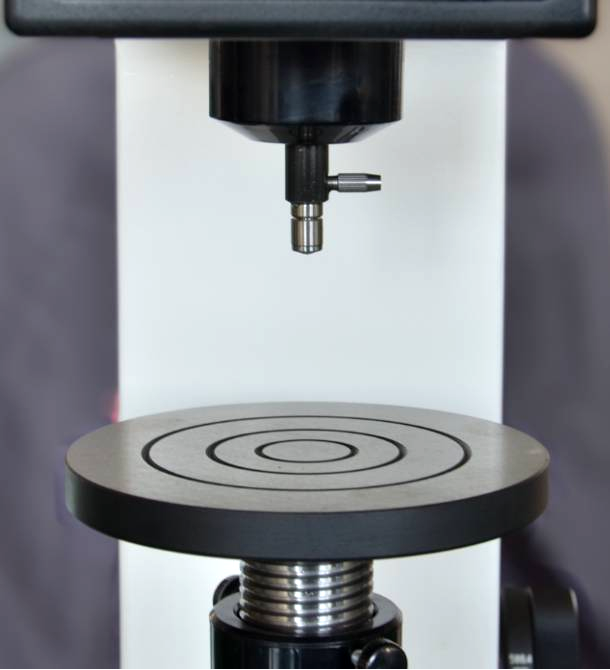

Operation interface Indenter and test table

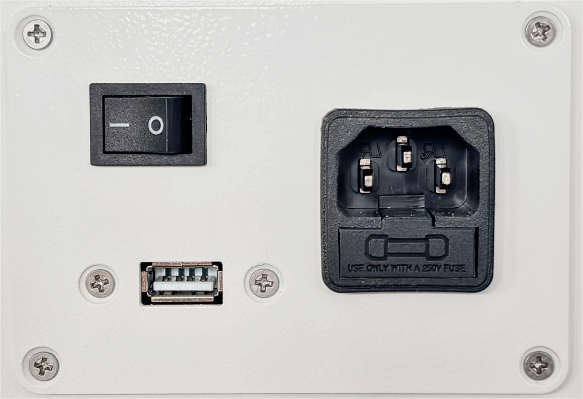

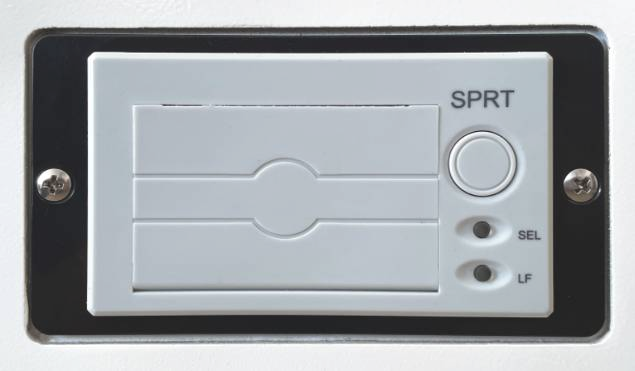

Built-in thermal printer USB port
Technical Specification：
|
Model |
SHR-1500DH |
|
initial test force |
10kgf (98.07N) |
|
total test force |
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ф1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
hardness reading |
5.6 inch LCD touch screen display, 6 folders, each 1000 sets data |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
data output |
built-in printer，RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~60s |
|
max. height of specimen |
400mm |
|
throat |
165mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine:520×215×880mm，packing: 650×370×1000mm |
|
weight |
net weight: 78kg，gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
diamond rockwell indenter |
1 |
|
2 |
ф1.588mmball indenter |
1 |
12 |
middle plane test table |
1 |
|
3 |
large plane test table |
1 |
13 |
V-shaped test table |
1 |
|
4 |
hardness block 60~70 HRC |
1 |
14 |
hardness block 20~30 HRC |
1 |
|
5 |
hardness block 80~100 HRB |
1 |
15 |
weight A,B,C |
3 |
|
6 |
power cable |
1 |
16 |
fuse 2A |
2 |
|
7 |
level |
1 |
17 |
horizontal regulating screw |
4 |
|
8 |
screw driver |
1 |
18 |
spanner |
1 |
|
9 |
anti-dust cover |
1 |
19 |
manual |
1 |
