SHR-560 Digital Double Rockwell Hardness Tester
The SHR-560 Digital Twin Rockwell Hardness Tester features a high-definition color touchscreen that intuitively displays the entire hardness testing process, including indentation and test force. Its main body is made of cast iron with natural aging treatment, ensuring minimal deformation. It supports multiple hardness scales such as full Rockwell and superficial Rockwell, with automatic loading, dwell, and unloading functions, and is equipped with a built-in thermal printer and USB data export. Key specifications include: a total test force range from 3kgf to 150kgf, a hardness resolution of 0.1HR, and a maximum specimen height of 185mm.
Product Details
Feature:
SHR-560 Digital twin Rockwell hardness tester adopts the high resolution color touch screen, it can show and set the present scale, test force, test indenter, dwell time and hardness conversion. The instrument adopts the dead weight loading mechanism, and can switch Rockwell and superficial Rockwell scales. During operation, do the manual pre-loading until it beeps, the instrument will automatically load, dwell, unload, and display the hardness value. The operation is convenient and the display is intuitive.
The main body adopts cast iron structure which minimizes the deformation. The shell has undergone natural aging treatment for more than half a year, and its physical properties are stable.
After heat treatment, the hardness of the lifting screw reaches 35~40HRC, which has stable structure and wear resistance.
The weights and lever are manufactured and calibrated by classic techniques, with high accuracy and can be fine tuned through mechanical structures.
5.6 inch HD touch screen display and operation, dynamic image display of operation process and beeping prompts.
It supports for both Rockwell and superficial Rockwell hardness scales, after selecting the scale it prompts the selection of corresponding indenter and test force, and the test force is switched by rotating the knob.
It supports the conversion of various hardness scales in real time.
It supports upper and lower limit settings and has the function of arc correction compensation.
Real time saving of hardness test results, automatic calculation of maximum, minimum, mean, standard deviation, repeatability, etc., with multiple folder selection, optional deletion and printing output.
Built in thermal printer with fast printing speed, and equipped with USB interface for users to output the data.
Application:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Standard: ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Detail pictures:

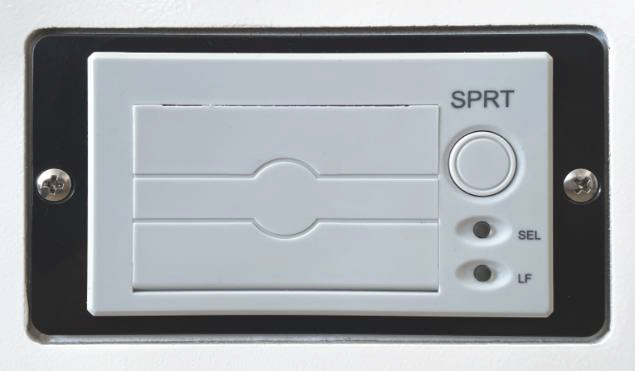

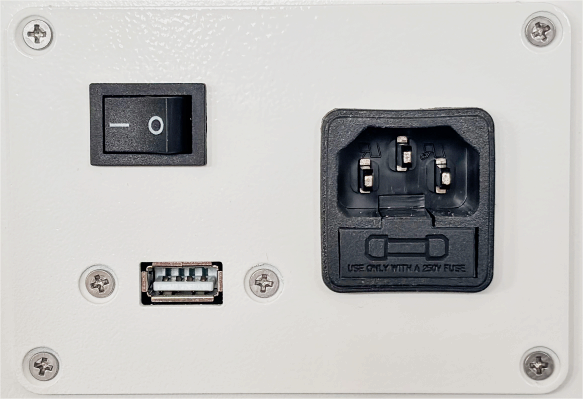

Built-in thermal printer USB port

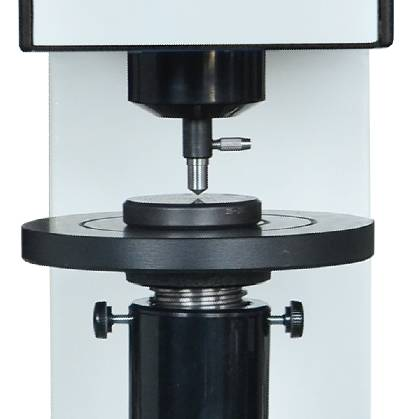

Operation interface Indenter and test table
Technical Specification：
|
Model |
SHR-560 |
|
initial test force |
3kgf (29.42N), 10kgf (98.07N) |
|
total test force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ф1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
hardness reading |
5.6 inch touch screen display, 6 folders, each 1000 sets data |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
data output |
built-in printer，RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~99s |
|
height of specimen |
185mm |
|
throat |
165mm |
|
power supply |
AC220V，50Hz |
|
dimension(LWH) |
machine :520×215×740mm，packing: 650×370×980mm |
|
weight |
net weight: 80kg，gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
11 |
ф150 large plane test table |
1 |
|
2 |
ф1.588mmball indenter |
1 |
12 |
Ф 75 middle plane test table |
1 |
|
3 |
diamond rockwell indenter |
1 |
13 |
Ф40 V-shaped test table |
1 |
|
4 |
hardness block 60~70 HRC |
1 |
14 |
horizontal regulating screw |
4 |
|
5 |
hardness block 80~100 HRB |
1 |
15 |
screw driver |
1 |
|
6 |
hardness block 20~30 HRC |
1 |
16 |
spanner |
1 |
|
7 |
hardness block 65~80 HR30N |
1 |
17 |
power cable |
1 |
|
8 |
hardness block75~85 HR30T |
1 |
18 |
fuse 2A |
2 |
|
9 |
level |
1 |
19 |
weight 1, 2, 3, 4, 5 |
5 |
|
10 |
anti-dust cover |
1 |
20 |
manual |
1 |
