SW-20 Digital Webster Hardness Tester
The SW-20 Digital Webster Hardness Tester is a portable instrument for the rapid hardness testing of soft metals such as aluminum alloys. It is suitable for aluminum alloy profiles, pipes, and plates, and can directly display hardness values on a digital screen with simple and efficient operation. Its key parameters include: measuring range 0-20HW, accuracy 0.5HW (5-10HW), and weight 0.5KG. Conforming to China's YS/T420-2000 and American ASTM B647-84(2000) standards, it is an ideal choice for testing the mechanical properties of aluminum alloys.
Product Details
Webster hardness testers also known as Webster hardness pliers, it is applied to the quick test for the hardness of aluminum alloy profiles, pipes, plates, aluminum parts and other soft metal such copper alloy, copper, stainless steel. It can be used to estimate whether the aluminum profile has aging or whether the aging is qualified, distinguish different aluminum grades and different aging condition. The tester is the first choice instrument for testing the mechanical property of aluminum alloy profiles.
Webster hardness tester is easy to operate, just clamp the work piece, and then read the hardness value directly.
It focus on high efficiency and good reliability which conform to the China non-ferrous YS/T420-2000 and American standard ASTM B647-84 (2000).
SW-20 can directly and quickly display the hardness value on the digital screen.

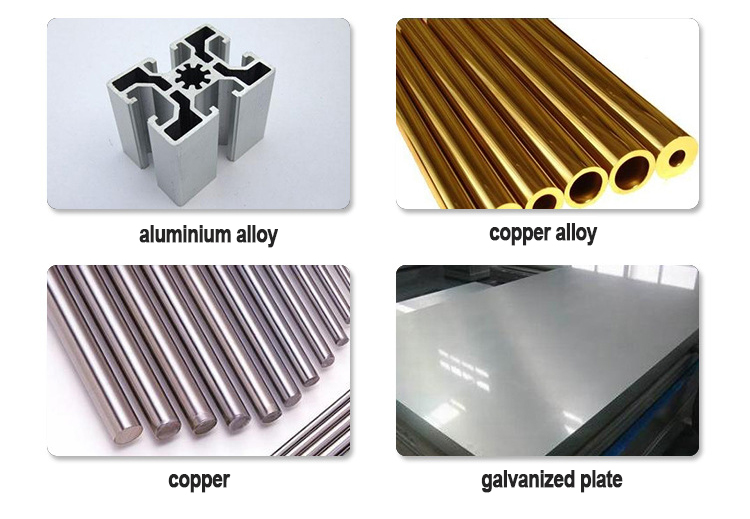

Webster Hardness Tester Application Fields
Technical Parameters of W-20S
|
model |
SW-20 |
SW-20a |
SW-20b |
|
Material |
aluminum alloy |
||
|
Specimen size |
Thickness 0.6-6mm |
Thickness 0.6-13mm |
Thickness 0.6-8mm |
|
Ring ID>10mm |
Ring ID>10mm |
Ring ID>6mm |
|
|
Test range |
20-110HRE 58-131HV |
||
|
Measure range |
0-20HW |
||
|
Accuracy |
0.5HW(5-10HW) |
||
|
Repeatability error |
0.5HW(5-10HW) |
||
|
resolution |
0.1HW |
||
|
Weight |
NW:0.5KG; GW1.5KG |
||

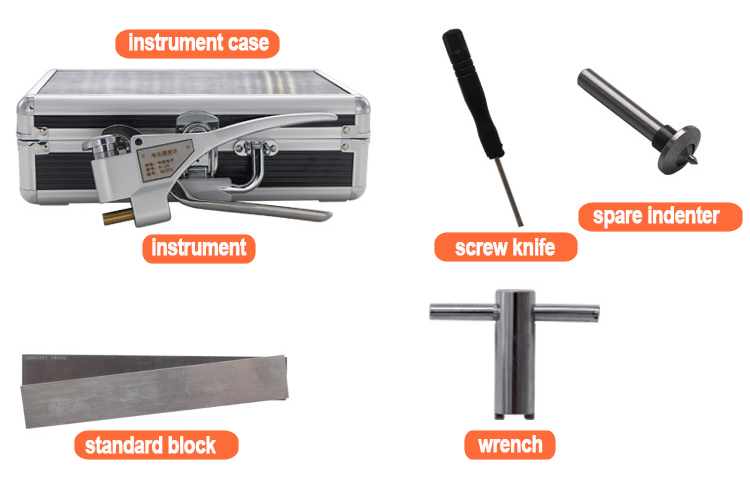

Packing of SW-20 Webster Hardness Tester
